Spread Group Allocations – Ribbon Toolbar
Genesis edition only.
The contextual ribbon toolbar for the Spread Group Allocations window provides you with access to all of the functions that allow you to add, remove and modify the Direct Cost Schedule Items assigned to the Spread Groups available within your project.

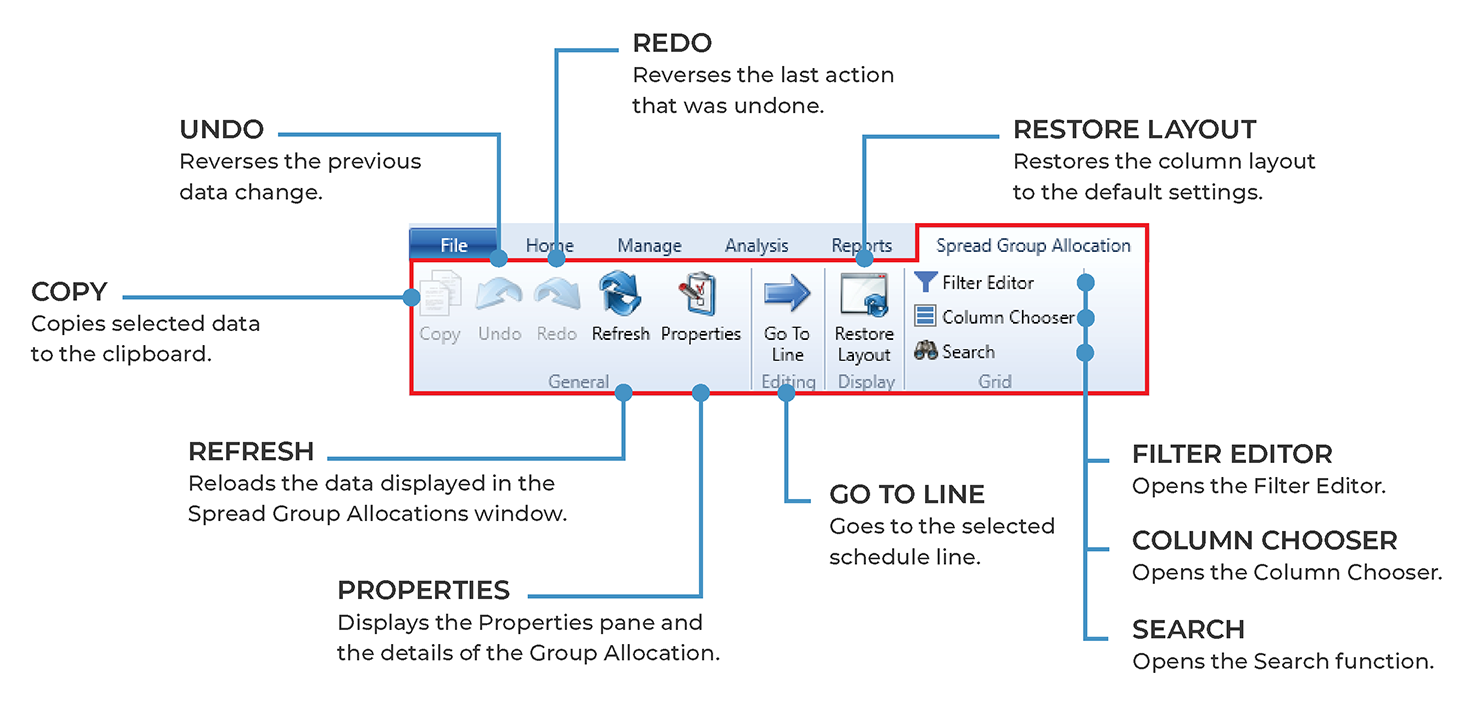

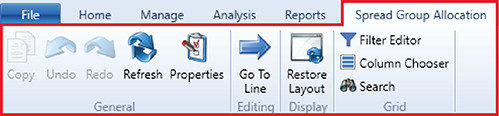

Spread Group Allocations – ribbon toolbar
GENERAL GROUP
|
NAME |
DESCRIPTION |
|---|---|
|
Copy |
Clicking the Copy button will copy the selected Spread Group information to the clipboard. This allows the data to be pasted within Expert Estimation or into an external application. |
|
Undo |
Clicking the Undo button reverses the last change made to the data. |
|
Redo |
The Redo button becomes available when an undo action is performed and is used to reverse the undo action. |
|
Refresh |
Clicking the Refresh button reloads the data in the window. |
|
Properties |
Opens the Properties pane on the right-hand side of the window. Allows for the grouping of the currently selected Direct Cost Schedule line(s). |
EDITING GROUP
|
NAME |
DESCRIPTION |
|---|---|
|
Go To Line |
Clicking the Copy button will take you to the selected scheduled line. |
DISPLAY GROUP
|
NAME |
DESCRIPTION |
|---|---|
|
Restore Layout |
If columns have been removed, adjusted or relocated, clicking the Restore Layout button will restore columns to their default layout. |
GRID GROUP
|
NAME |
DESCRIPTION |
|---|---|
|
Filter Editor |
Opens the Filter Editor to allow users to modify the contents of the grid so that only items that match the specific criteria set will be displayed. |
|
Column Chooser |
Clicking the Column Chooser button will open a dialogue box that will allow users to add or remove columns from the grid. |
|
Search |
Clicking the Search function will display a field in the top right-hand corner of the grid, that will allow users to search the current window for the text entered. |
